Industrial laser fabric cutting machine with conveyor table and automatic feeder is used to cut out shapes and contours for clothing, garment, fashion, apparel.
STJ1630A laser fabric cutting machine is a type of automatic CO2 laser cutting system using a working table of 1600mm x 3000mm with automatic feeder and roller for industrial fabric cuts, which is suitable for engraving and cutting all kinds of fabrics including cotton fabrics, silk fabrics, chemical fiber fabrics, decorative fabrics, pure linen fabrics, polyester fabrics, and clothing accessories such as gray cloth, felt, non-woven fabric, patch embroidery, dust-free cloth, as well as leather materials such as genuine leather, packaging leather, decorative leather, artificial leather, and soft leather.
STJ1630A fabric laser cutter achieves fast and precise cuts, as well as special-shaped cuts of fabrics, which is highly ergonomic and large-format workbench design for cutting various sizes of fabrics. It is capable of power follow, frequency follow and speed follow, which can effectively reduce corner cutting burrs. The automatic loading and unloading system of STJ1630A saves labor, improves cutting efficiency and accuracy, and reduces manufacturing costs, which is an ideal cutting tool for fabric.
• STJ1630A comes with downdraft and split structure to achieve higher cutting speed, high cutting quality, smooth cuts without yellowing.
• STJ1630A is equipped with X-axis and Y-axis stepping drive system with PMI guide rail, stepping motor and driver, which makes the machine run more stably and ensures balanced and efficient processing. The all steel integral table can ensure that the cutting accuracy error range is within 0-0.5mm.
• Automatic feeding system to achieve fast and accurate cutting without manual loading and unloading, improving efficiency and saving labor costs.
• Efficient and stable power switch and USB data transmission make the whole machine work more stably, with faster processing speed and higher precision.
• STJ1630A uses 32-bit high-speed control system with higher performance, and the smooth S-shaped acceleration and deceleration control software makes the action smooth and fast. The automatic matching function of light intensity and speed ensures the corner cutting quality, and the continuous curve cutting function can make the curve cutting speed up to 36 meters per minute.
• STJ1630A adopts high-frequency uniform power CO2 laser tube with a constant temperature cooling system to ensure that the machine can work continuously for 24 hours, and also make the cutting results of each project consistent.
• Non-contact thermal cutting with small thermal diffusion area and high processing quality, which is very suitable for cutting and processing cloth. The specific performance is that the range of processed fabrics is wide, the cutting is smooth without flash, automatic closing, no deformation, and graphics can be output by computer at will.
• Intelligent typesetting technology with high efficiency and material saving. After the pattern is designed, the software automatically typesets the pattern and fits closely to reduce waste and maximize material savings, the production efficiency and costs are optimized.

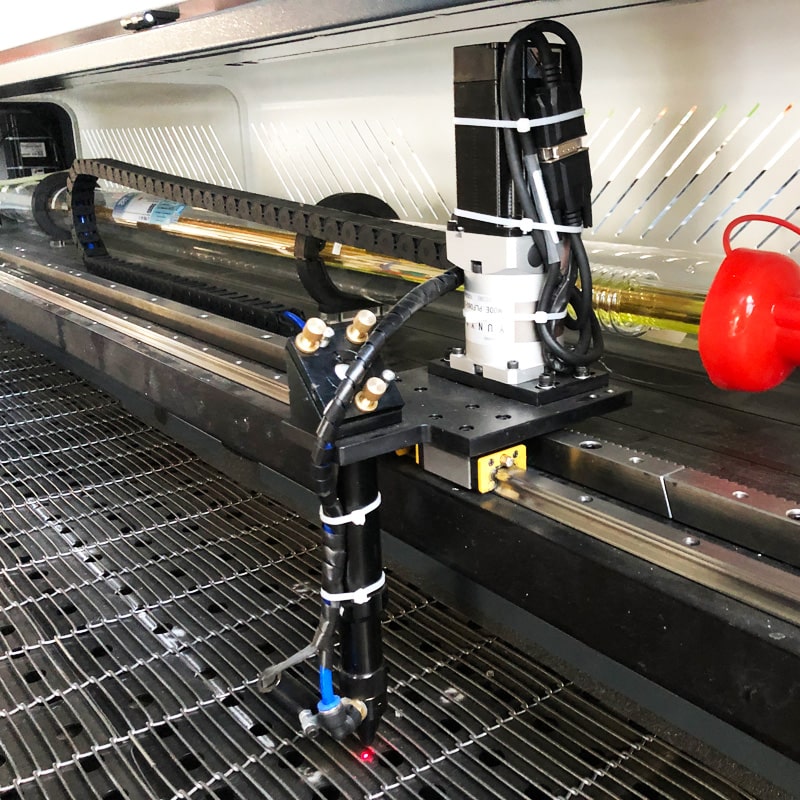

• The position of the laser cutting head can be adjusted at will, and the operation is convenient. Dual heads and multiple heads are optional. The latest operating software can freely control the power of the laser heads, so that the cutting results of all heads are exactly the same, and the simultaneous work of multiple heads will increase the work efficiency.
• The cutting software for STJ1630A can support direct output files from AutoCAD and CorelDRAW, and the supported file formats include but not limited to PLT, DST, DXF, DWG, AI, LAS.
Professional large-format visual positioning and cutting software, with graphic layout and sharp corner smoothing functions, can realize automatic edge lifting, feature positioning and other positioning methods, and can realize multiple templates, multiple features and other visual cutting functions.
• Visual Positioning: Professional large-format visual positioning and cutting software, with graphics layout and sharp corner smoothing functions, can realize automatic edge lifting, feature positioning and other positioning methods, and can realize multiple templates, multiple features and other visual cutting functions.
• CCD scanner: Directly cut after scanning the patterned material.
• Plotter: Use templates to scan for subsequent shape cutting.
• Paintbrush: Mark the model and serial number of the material to be cut.
STJ1630A is used in plush toys, clothing, fashion, suits, sportswear, shoes and hats, automotive interiors, as well as fabric and leather customization.
STJ1630A is used for engraving, spraying, hollowing and cutting of pure cotton, plush collar, silk, polyester, chemical fiber, denim, flannelette and other textile fabrics, as well as genuine leather, artificial leather, soft leather, decorative leather and packaging leather.
Model | STJ1630A |
Table Size | 1600mm x 3000mm |
Laser Power | 150W |
Laser Type | CO2 Glass Laser Tube |
Resetting Positioning Accuracy | ±0.01mm |
Compatible Software | CorelDraw, AutoCAD, Photoshop |
Laser Engraving Speed | 1 - 60,000mm/min |
Laser Cutting Speed | 1 - 40,000mm/min |
Resolution Ratio | ≤0.0125mm |
Position System | Red Dot |
Interface | USB |
Support Graphic Format | DST, PLT, BMP, DXF |
Cooling Mode | Circulation Water Cooling |
Working voltage | AC 110 - 220V ± 10%, 50 - 60Hz or Depend on Customer |
Operating Temperature | 0ºC - 45ºC |
Operating Humidity | 5% - 95% |
Driving System | Stepper Motor |
Packing | Plywood Case |
Guarantee Date | 12 Months |
I bought this laser to offer pricision cutting services specially for fabrics of all kinds. I have to say this is a production level machine and the cutting table is large enough for my clothing line. Easy to use and works as advertised. I cut some sleeveless black tops of cotton without burnt edges and am looking forward to other more challenging projects. All in all a good laser fabric cutter for the money.
El STJ1630A funciona muy bien para cortar la mayoría de las telas. Es fácil de usar y libera mis manos. Creo que por el precio obtienes una cortadora láser de calidad que te ahorrará tiempo y me impresionó la falta de deshilachado de mi tela con bordes limpios. Soy dueño de un negocio de ropa y este láser será una herramienta de corte esencial. Recomiendo encarecidamente esta máquina.
