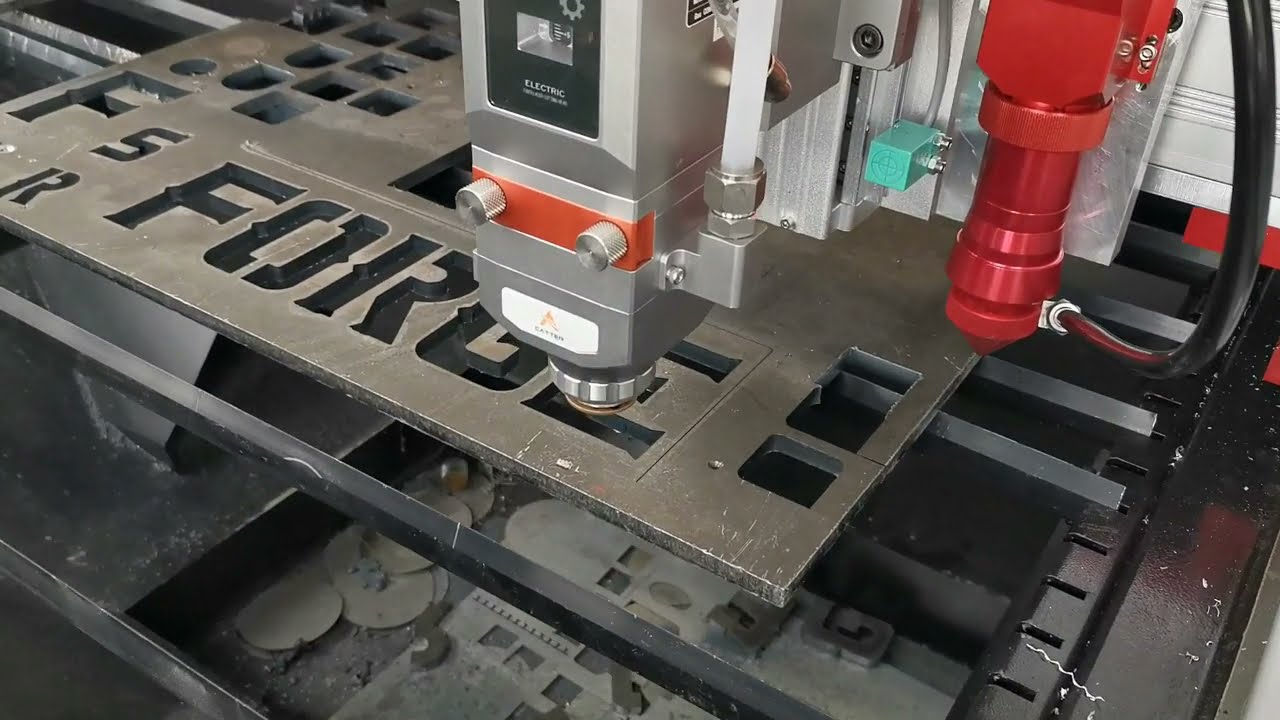

4x8 combo fiber and CO2 laser cutter comes with an all-in-one combination of 150-watt CO2 laser and 1000-watt fiber laser for metal, wood, plywood and acrylic.
ST-FC1325LC comes with 1000W Raycus fiber laser source to cut metals and Yongli 150W CO2 laser tube to cut wood, acrylic, and plastics. 4x8 full sheet capacity is the most popular table size to cut metals and nonmetals such as stainless steel, carbon steel, mild steel, galvanized sheet, brass, copper, aluminum, plywood, MDF, wood, acrylic, plastic and more. It offers a stable and precise drive system with ball screw transmission, Delta servo motors, dynamic auto-focus laser cutting head, and multilingual CNC controller.
All-In-One Laser Cutter
It combines fiber and CO2 laser cutting system to cut 4x8 whole sheets of metal and non-metal materials in one machine. CO2 and fiber laser cutting software are installed in one PC system, which is more convenient to operate for both beginners and experts.
Auto Focus Laser Cutting Head
It is very efficient for some sheet metals that are not completely flat, and can automatically adjust the focal length controlled by the sensor on the laser head. The sensor always detects the gap between the nozzle and the metal surface. As the cutting process starts, a sensor tracks the profile of the metal and adjusts the nozzle on the Z axis to maintain a constant focus to ensure a clean and polished edge.
Delta Servo Motor
High precision and speed are the key factors to get the best quality for laser cutting, which is why STYLECNC adopts the Delta brand servo drive system and CNC drives on the X-axis and Y-axis. Its servo technology is known for its high precision, smooth motion and lack of cogging at high speeds.
Ball Screw Transmission System
It is a safe and fast motion system with high precision and easy maintenance. Known as a ball screw, the system runs smoothly at high speeds on the gears, reducing the chance of the machine losing phase to zero. It is made using a rigorous manufacturing process that ensures maximum stability and minimum wear.
Nitrogen-Oxygen-Air Valve
It's a filtration system that intelligently regulates gas flow, keeps water and dirt molecules from reaching the lens, lets you control when the gas comes out, and an oxygen pressure indicator that ensures you're getting the right pressure to cut metal with optimum precision and quality.
Industrial Water Chiller
Industrial water chiller can help regulate the temperature of the laser tube while it is running by keeping the water at room temperature. This is an efficient unit that requires minimal maintenance.
Multilingual CNC Control System
Comes with user-friendly multilingual Au3tech professional CNC control system software as well as potentiometers for adjusting laser output power, laser beam ON/OFF button and keyed safety lock switch. DSP control is optional.
Software and Interface
Our SC series program compatible with various CAD software (such as Corel Draw, AutoCAD, Photoshop, Illustrator). It supports a variety of file formats such as DXF, AI, PLT, LXD.
Exhaust System
Various materials release small amounts of fumes and gases during engraving or cutting. To extract these fumes and gases, our STYLECNC lasers are equipped with a 2.2 kilowatt exhaust system and 12 feet of flexible ventilation ducts, which are installed when the machine is operating in small enclosed areas.
Safety Features
Our laser cutting machines come with safety sensors and safety features that disable the equipment in case of misuse or unsafe operation. The emergency stop button enables the machine operator to completely shut down the entire machine immediately in the event of a problem or any incident. Safe-on critical functions prevent unauthorized use or operation of the laser cutting machine, allowing only approved operators and/or trained personnel to be responsible for the operation and maintenance of the machine.
Manuals and Instructional Videos
Installation, operation and maintenance manuals and instructional videos with clear explanations of the installation process and use of the software, control panel and other features.
The two laser sources can be activated alternately according to different materials, no need to manually change the laser generator, just touch the button in the Au3tech control software to easily switch between the fiber optic and CO2 laser sources. Any conceivable CO2 and fiber laser cutting application can be done with this all-in-one laser machine.
ST-FC1325LC is easy to cut metals such as carbon steel, stainless steel, tool steel, mild steel, iron, copper, brass, aluminum, gold, silver, titanium, magnesium, alloy, and galvanized sheet, as well as nonmetals such as wood, MDF, plywood, acrylic, plastic, rubber, foam, leather and fabric.
ST-FC1325LC is popular in advertising, decoration, sheet metal, lamps, home appliances, machinery, kitchen utensils, cabinets, auto parts, crafts, artwork, gifts, signs, and tags.
| Model | ST-FC1325LC |
| Laser Power | 1000W Fiber Laser + 150W CO2 Laser |
| Laser Source | Raycus + Yongli |
| Laser Type | Fiber + CO2 Laser Combo |
| Working Area | 4 x 8 feet |
| Transmission Method | Taiwan TBI ballscrew transmission |
| Driving System | Servo motor and driver |
| Max Moving Speed | 30m/min |
| Power Demand | 380V/50HZ or 220V/50HZ/60HZ |
| Control System | Au3tech control system |
| Cooling System | Water chiller |
I have a store for custom business signs, and I had been looking for an affordable and practical all-in-one laser machine to cut through both metals and nonmetals. After reading several reviews, I made a decision to give the ST-FC1325LC a try. Works as advertised. Easy to cut through stainless steel and plywood as well as acrylic like a hot knife through butter. Cuts more precise than I thought.
