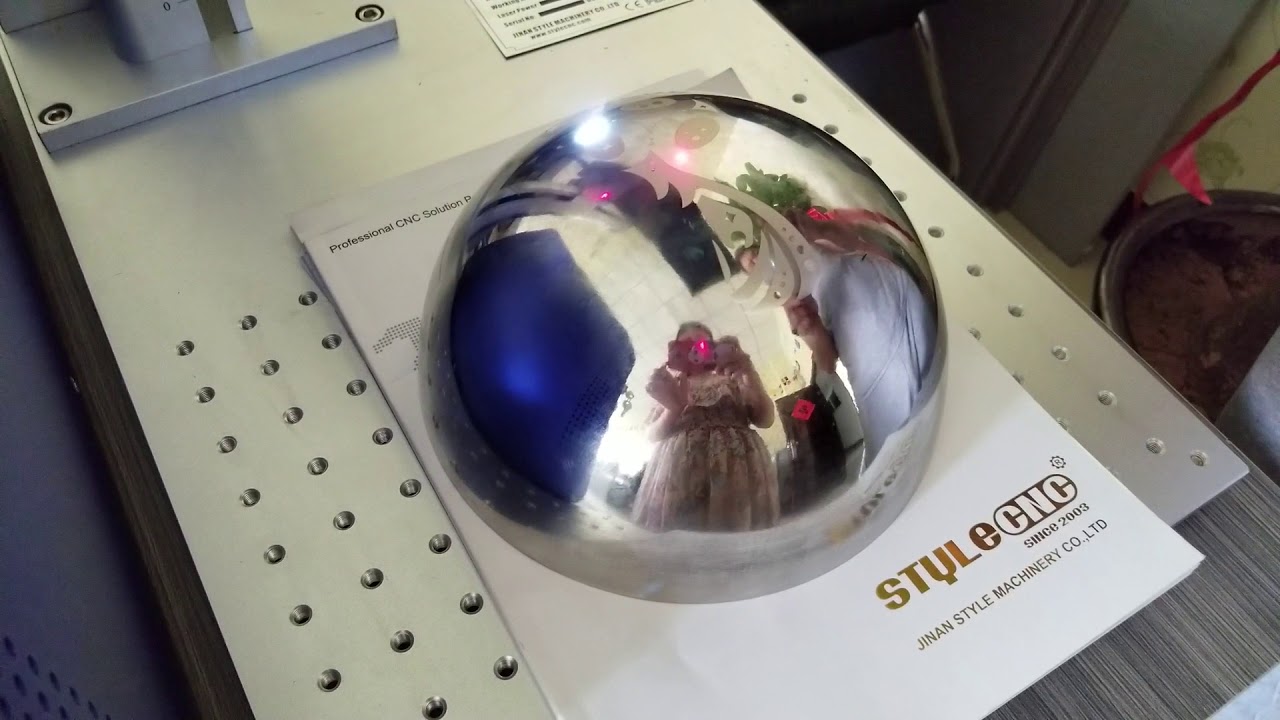

3D fiber laser engraving machine is a type of 5 axis laser texturing system for marking on 3D curved surfaces, mold textures, deep textures, and micro finishes.
STJ-100F-3D fiber laser marking machine comes with a high-speed, high-precision 3D vibrating mirror, combined with the 3D special software and control system independently developed by STYLECNC, to perfectly realize the fine marking of parts on any curved surface without out-of-focus phenomenon. It can also track the focus of deep engraving in real time, making the processing efficiency and quality better than traditional 2D marking machines. In a real sense, it fully realizes the 3D marking function.
The 3D dynamic marking system is easy to use for engraving three-dimensional parts with large arc and high drop. The equipment runs perfectly, fast and efficient. With 3-axis controller, it can freely control the focal length, and can mark with high precision on any shape, making up for the lack of fixed focal length of traditional laser marking machines. Not only can it deal with various stepped surfaces, but also realize indiscriminate marking of various shapes. It is possible to respond to changes in focal length, marking position, and shape of different products by simply switching the settings. Switching can be done without physically moving parts or laser markers. It has environmental resistance performance for stable operation in harsh environments.
The 3D scanning galvanometer can change the focus of the traditional fixed-focus laser engraving machine arbitrarily. Realize that the corners are always marked and processed according to the external dimensions of the workpiece. Switching can be done without physically moving the workpiece or laser marking machine. The focus can be adjusted automatically, and engraving can be performed while tracking even if there is a slight difference in thickness. It can not only reduce the workload, but also significantly improve the quality of engraving. The operation is simple and convenient, just choose from the standard shape, and it can be easily converted into a 3D set. You can adjust the size or position while confirming the 3D preview screen.
• The 3D galvanometer features with small size, high positioning accuracy, fast marking speed, and strong anti-interference ability.
• During the dynamic marking process, the marking line has high precision, no deformation, uniform power, no deformation of the pattern, and the comprehensive performance has reached the leading level in the same industry.
• By changing the position of the focus axis, deep carving can be carried out, which can be used for 3D applications such as relief.
• With the function of three-dimensional curved surface marking, subverting the traditional 2D marking mode, it can automatically complete stepwise marking of different heights at one time, and realize various 3D markings such as inclined planes, step differences, cylinders, cones, spherical surfaces, and stretched curved surfaces. model.
• Using advanced digital three-axis dynamic focusing technology, the marking speed is fast, the zoom control is high in real time, and the focus spot is uniform. Ensure that the focused spot is fine within the height range of 0~150mm, and the marking effect is consistent.
• Unbelievably large central angle marking, which can reach a central angle of 117° on a cylinder.
• On the marked parts, the target marking graphics can be presented perfectly, avoiding deformation such as elongation and inclination. Make the engraved pattern closer to the original form.
• Make marking boundaries no longer ignored. The marking effect of each position on the part is uniform and consistent.
• Easy to use, completely self-developed marking software system, easy to learn and use, what you see is what you get.
• The software is powerful, it can import graphics output by mainstream 3D design software, and can perform simple 3D graphics editing, with the function of converting 2D graphics to 3D, and the operation is simple and convenient.
• The combination of galvanometer scanning and table movement is optional, with fast engraving speed and large area.
Applicable Materials
STJ-100F-3D is suitable for all types of metals, alloys and non-metals, such as ABS, PVC, epoxy resin, silicon wafer, paint (electronic component packaging insulation layer, car instrument button, mobile phone button, audio transparent button), stainless steel, gold, silver, copper, iron, aluminum, titanium, molybdenum, nickel, and zinc.
Applied Industries
STJ-100F-3D is used in electronic components, mobile communications, clocks and glasses, packaging, military and police firearms, rifles, pistols, electrical appliances, jewelry, glasses, industrial bearings, molds, clocks, hardware, tableware, auto parts, communication products, plastic buttons, wires and cables, integrated circuits (IC), instruments and meters, sanitary ware, medical equipment, handicrafts, PVC pipes, household appliances, signs, and display.
Model | STJ-100F-3D |
Laser Source | Fiber Laser Generator |
Laser Wavelength | 1064nm |
Laser Power | 100W |
Laser Beam Quality M2 | <1.8 |
Pulse Repeatable Frequency | 1kHz~4000kHz |
Cooling Method | Air Cooling |
Marking Area | 100mm×100mm×30mm, 200mm×200mm×80mm |
Max Speed in X-Y Axis | 600@100×100 Charaters/s |
Focal Length | 114mm |
Scan Angle | 11 |
Repeatablity | 8urad |
Operating Ambient Temperature | 18~28℃ |
Power Demand | 220V/50HZ, 110V/60HZ |
Overall Power Consumption | 0.8KW |
