Fiber laser deep engraving machine is a metal etching tool to create reliefs on aluminum, brass, silver, gold, steel for custom mold, gun, jewelry, auto parts.
Laser deep engraving machine is a high-power fiber laser marking tool for etching on any metal, including soft metals such as gold, silver, aluminum, and brass, as well as hard metals such as stainless steel, carbon steel, tool steel, magnesium, and titanium. Typically, the fiber laser power for etching metals is 50W or 60W, which is cost-effective, and the higher 100W is also a good option, but the price is higher for beginners.
The laser deep metal engraving machine adopts advanced optical fiber resonance technology to effectively improve the power density and beam quality of the laser, so that the laser can quickly sublimate the metal material into a gas in a short time and reduce the heat-affected range. The frame or outline is more vertical, and burrs are effectively reduced. The texture of the bottom surface is clear and beautiful. It only needs one time to complete a series of process operations of the traditional corrosion process, and no consumables, no film, no chemical preparations, no pollution to the environment, greatly reducing the cost of use.

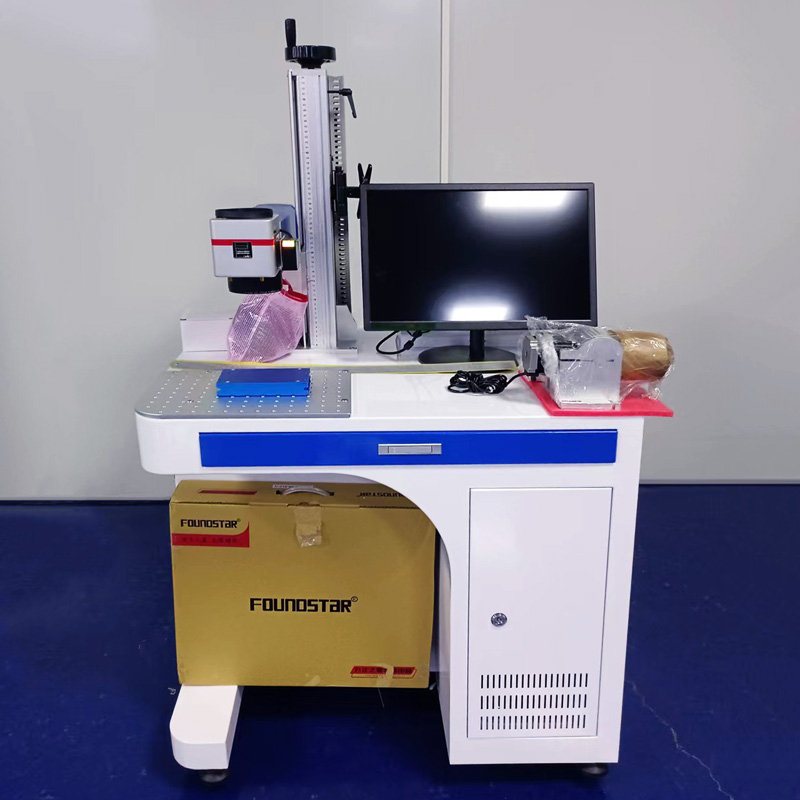

STJ-60F is the most popular laser metal deep engraving machine on the market, which comes with a 60W fiber laser generator for various common metal etching projects and ideas.
In most cases, the depth of fiber laser metal engraving can reach 0.039 inches (1 mm), and the speed of metal engraving with fiber laser ranges from 0.04 mm3/s to 0.70 mm3/s, depending on the power of the laser generator and the focal length of the F-theta scan lens, as well as the material and hardness of the metals.
When a fiber laser engraver is etching soft metals such as aluminum, copper, brass, gold and silver, the F-theta scanning lens with a focal length of 254 mm can make the laser work at a speed between 0.41 and 0.70 mm3/s, while the F-theta scan lens with a 420 mm focal length can only allow the engraver to run at a speed from 0.22 to 0.36 mm3/s.
In the case of fiber laser engraving hard metals such as stainless steel, carbon steel, titanium and magnesium, an engraver with an F-theta scanning lens with a focal length of 254 mm is able to etch metals at a speed from 0.05 to 0.11 mm3/s, while a laser with an F-theta scanning lens with a focal length of 420 mm is capable of engraving metals at speeds between 0.04 and 0.09 mm3/s.
• Integrated overall structure design, automatic focusing system, user-friendly operation interface, and humanized operation process.
• Stable performance, high photoelectric conversion efficiency, low energy consumption and affordable price.
• No need of traditional printing consumables such as ink, lower processing cost than traditional silk screen printing.
• No contact, no cutting force, little thermal influence, high precision, hard to wear and tear.
• STJ-60F uses a laser diode as a pump source, and its average working time can reach 100,000 hours.
• EZCAD software is easy to use and easy to operate, and supports most file formats such as bmp, jpg, jpeg, png, tiff, gif, ai, plt, dxf, dst, svg, nc, tga.
• No need for a huge water cooling system, just simple air cooling, plug and play to work anywhere.
• Computer controls for laser automation to be fitted into existing or integrated into new batch production lines.
STJ-60F laser metal deep engraving machine is used in jewelry, seals, guns, moulds, auto parts, motorcycle parts, aerospace components, industrial bearings, electronic components, electrical components, electrical appliances, electronic communications, precision hardware, gift accessories, medical machinery, glasses clocks, instruments and meters and sanitary ware.
STJ-60F deep laser engraver is capable of etching not only soft metals such as lead, gold, silver, tin, zinc, aluminum, thorium, copper, brass and bronze, but also hard metals such as tungsten, steel, chromium, titanium, iron, vanadium, and lutetium. In addition, STJ-60F can also engrave on plastic, acrylic, alumina material, electroplating material, coating material, spraying material, rubber, epoxy resin, ceramics and other non-metallic materials.
Brand | STYLECNC |
Model | STJ-60F |
Laser Power | 60W (30W, 50W, 100W for Option) |
Laser Wavelength | 1064nm |
Fiber Cable Length | 3m |
Pulse Width | 20ns |
Repetition Frequency Range | 1-600kHz |
M2 | <1.8 |
Max.Single Pulse Energy | 1.25mJ |
Output Power Stability | <5% |
Output Beam Diameter | 7±0.5mm |
Power Range | 0-100% |
Marking Range | 110*110mm/200*200mm/300*300mm |
Minimum Line Width | 0.01mm |
Minimum Character | 0.1mm |
Marking Speed | ≤7000mm/s |
Marking Depth | Depend on materials |
Repeatability Accuracy | ±0.001mm |
Working Voltage | 220V±10%/50Hz or 110V±10%/60Hz or Customized |
Unit Power | <0.5kw |
Working Environment | Clean and dust free or dust less |
Working Condition Humidity | 5%-75%, 0-40 degree, free of condensed water |
Laser lifetime | >100000 hours |
Net weight | 120 kgs |
Packing Size | 770*870*1200mm |
The STJ-60F laser deep engraver works better than expected, but there is a short learning curve. It takes some time on EZCAD software to figure out where and how to set sculpting parameters. Easy to handle painted metal like business cards since you are just burning off the paint from the surface. Deep engraving on stainless steel, brass or silver takes more work, which means slowing down and re-engraving multiple times. I was very surprised to find that the laser was powerful enough to melt all the metal surfaces of the jewelry I was personalizing. One last thing, make sure to to buy a smoke extractor, or you can open a window and vent the burning fumes outside as they are probably toxic.
